PTFE Band

KWO® MultiTex® Tape

ePTFE gasket tape

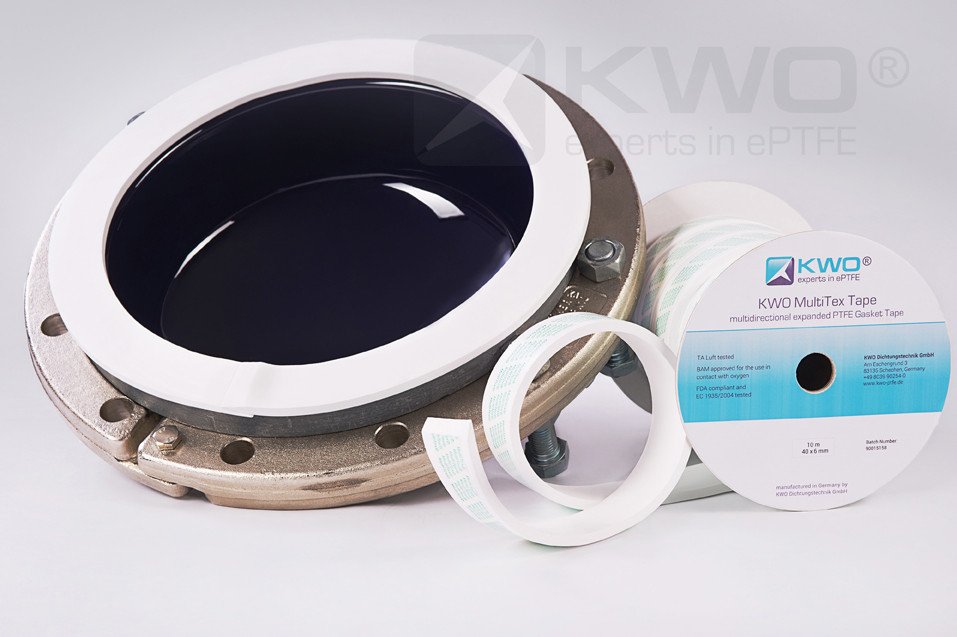

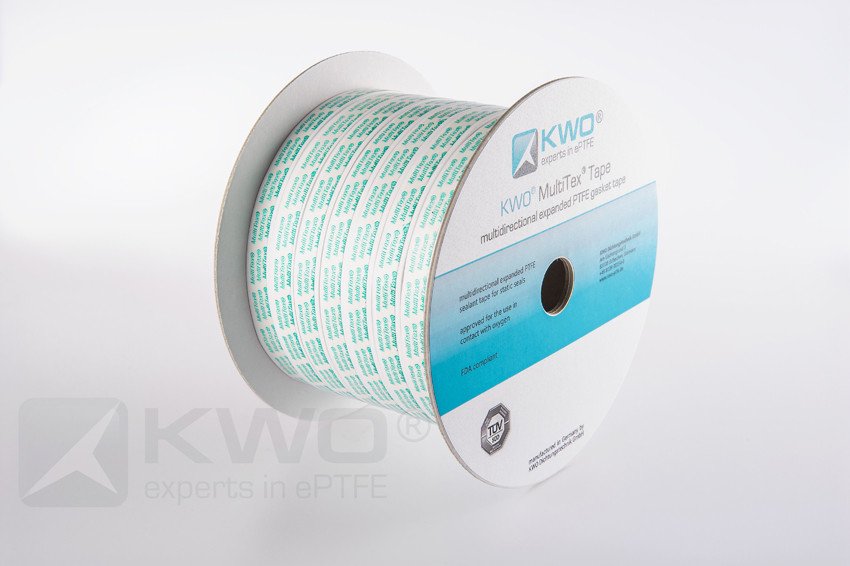

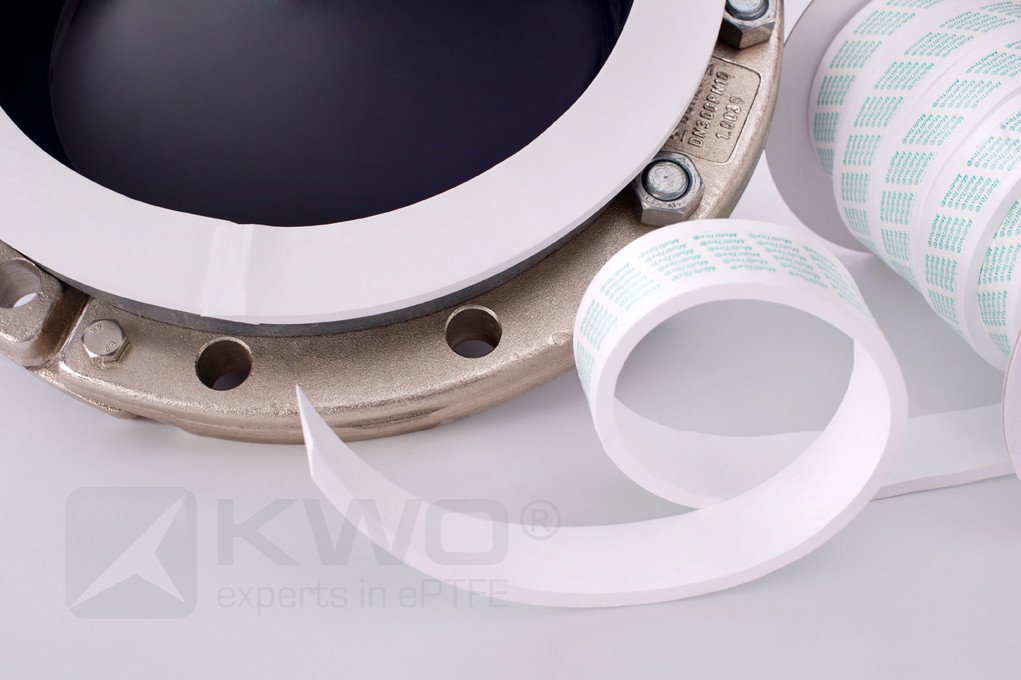

KWO® MultiTex® tape is a high quality gasket material made from multidirectionally expanded PTFE. In the expansion process the PTFE material is biaxially stretched.

Thereby the lengthwise and crosswise cold-flow tendency is reduced, the tensile strength is increased and the recovery property is substantially improved. The flexible material adapts excellently to the sealing surfaces and compensates for considerable unevenness, even at changing temperatures and loads. Another advantage of the material is that the seal tape is merely compressed but not widened during installation. The self-adhesive tape is easy to position.
KWO® MultiTex® gasket tape ensures always an excellent tightness under operating conditions. The product has very good recovery properties and a low leakage coefficient, even at reduced sealing pressure.
KWO® MultiTex® gaskets are suitable for all applications in which the high resistance of the PTFE material is required and where conventional gasket tapes reach their limits. The tape is characterised by an almost full chemical resistance and is suitable for temperatures of up to 230°C.



  • excellent tightness; full resistance
  • suitable to fill wide flange gaps
  • easy to position, even on a small diameters
  • withstands high loads; very low cold-flow tendency
  • excellent recovery properties; suitable for changing loads
  • suitable for high-temperature applications
  • allows a precise mathematical approach to the sealing application
  • harmless in contact with food
  • 100 % biaxial expanded PTFE (ePTFE) without fillers
  • high quality biaxial expanded gasket tape
  • perfect recoverability while simultaneously reduced gasket stress
  • UV resistant; no ageing
  • non-toxic, biologically inert
  • non-flammable



  • sealing for tanks
  • heat exchangers
  • apparatus engineering
  • glass-lined steel systems
  • chemical reactors
  • machine housing
  • compensators
  • pumps
  • flue gas plants
  • food processing systems
  • BAM - suitable for use with oxygen
  • proven by TA-Luft
  • compliant to FDA
  • EC1935/2004 - suitbale for applications with food contact (from June '15)
  • gasket characteristics pursuant to DIN EN 13555

Technical Data

RAW MATERIAL100 % biaxial expanded PTFE (ePTFE) without fillers - self-adhesive (hot melt adhesive)
TEMPERATURE RANGErecommended temperature range: from -200°C to +230°C; material heat resistant up to +315°C
CHEMICAL RESISTANCEpH range from 0 to 14; full chemical resistance, except molten alkali metals and elemental fluorine
PRESSURE RESISTANCEresistant within the usual pressure range of standard flanges up to 60 bars; suitable for vacuum applications (depends upon the concrete installation conditions)
PHYSIOLOGICALLY INERTphysiologically harmless in all recommended applications
