PTFE Band

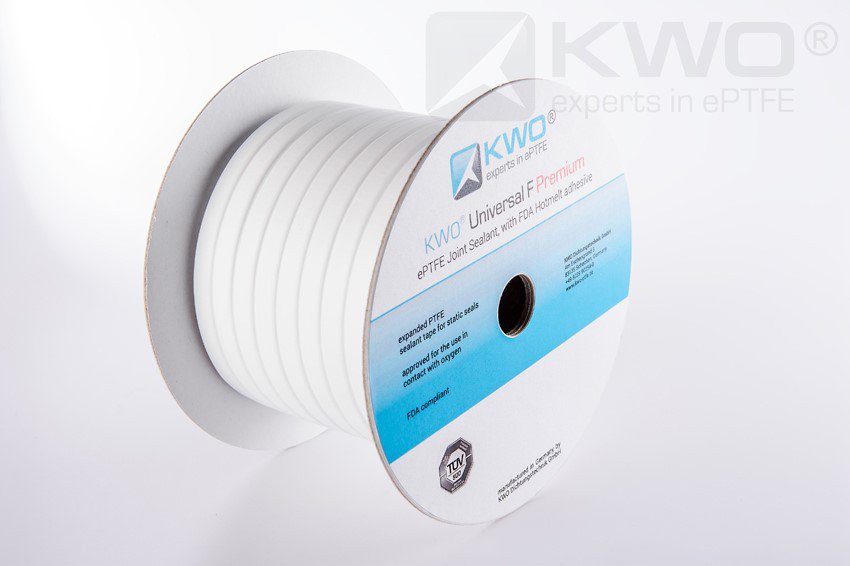

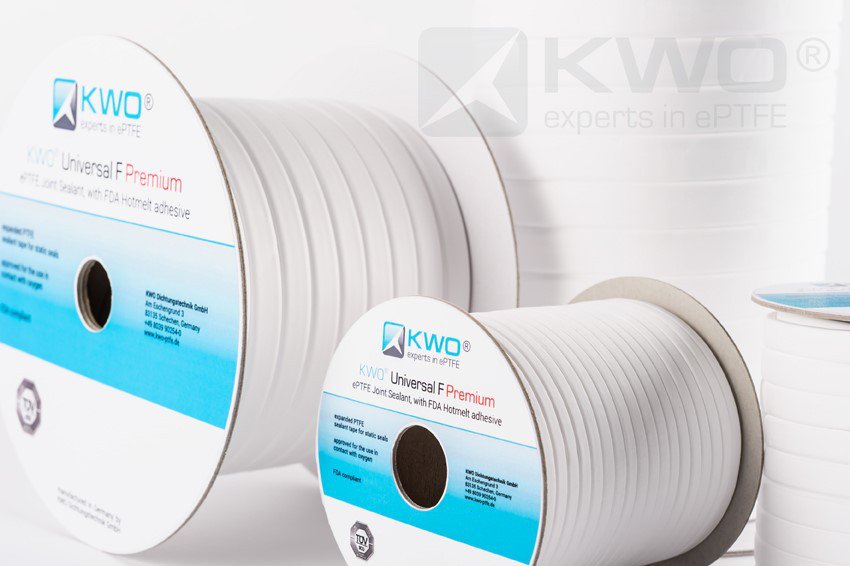

KWO® Universal F premium

ePTFE joint sealant Tape for food and pharma

KWO® Universal F Premium is a joint sealant tape made from 100% pure, monoaxially expanded PTFE and especially suitable for food and pharmaceutical applications.
The exceptional malleability of the ePTFE joint sealant tape can compensate for out-of-parallel or damaged sealing surfaces and allows use with stress sensitive connections and applications where only a limited flange load is available.
KWO® Universal F Premium is the universal sealing solution on a roll, which can instantly be formed in place to fit any shape, regardless of flange size or complexity.
Typical applications are the sealing of flanges, pump housings, compressors, hand- and manholes, air ducts and compensators.



  • Adapts well to sealing surfaces
  • Compensates irregularities
  • Simple and fast installation
  • Reduced down time, cost effective seal
  • Excellent chemical resistance
  • UV resistant, non-ageing
  • Nontoxic, biologically inert



  • Large steel flanges
  • Pump housings
  • Compressors
  • Air ducts
  • Compensators
  • BAM tested for contact with oxygen
  • TA Luft regulation and blow out safety according VDI 2200
  • Specific values according to DIN EN 13555
  • proven by DVGW
  • FDA 21 CFR 177.1550
  • EC 1935/2004

Technical Data

RAW MATERIAL100% expanded PTFE (ePTFE)
CHEMICAL RESISTANCEIn the entire pH range (pH 0-14, except molten alkali metals and elemental fluorine)
TEMPERATURE RANGE-268°C (-450°F) up to +270°C (+518°F), short-term +315°C (+600°F) *
PRESSURE RESISTANCEVacuum up to +100bar (1500psi) depending on the installation situation *
PHYSIOLOGICALLY INERTphysiologically harmless in all recommended applications

* Note: Temperature and pressure guides cannot necessarily be used simultaneously.
